Piazza 8 RGB

Order no. 81113-08
Dimensions (L x W x H) 55 / 55 / 37 mm

Piazza 8 RGB complements the basic device with RGB status LEDs in the button elements. For typical KNX operating functions such as switching or dimming, the status of the KNX object can thus be displayed in the button feedback. The labeling field can be used for the description of the button function and has 2 orientation RGB LEDs at the top and bottom.

Piazza 8 RGB devices support the functions switching, dimming, value setting, step-by-step value setting, blinds, scene control, setpoint shift, operating mode setting, presence, fan control, individual buttons (on, off, toggle).

The two RGB LEDs in the labeling field (top and bottom) are freely parameterizable and can be used for orientation when permanently switched on. The RGB LEDs at the top and bottom and in the key elements can each be controlled with the colors yellow, red, green, blue, violet and turquoise as follows: one color when key is pressed, one color for status value 0, one color for status value "on", one color for flashing LED for status value 0 and one color for flashing status value 1. In addition, three alarm object LEDs can be controlled as follows: Behavior on alarm -> all LEDs flash, all orientation LEDs flash, only the right (left) LEDs flash or single button LEDs flash. The LED color in case of alarm can be defined via a second ETS parameter.

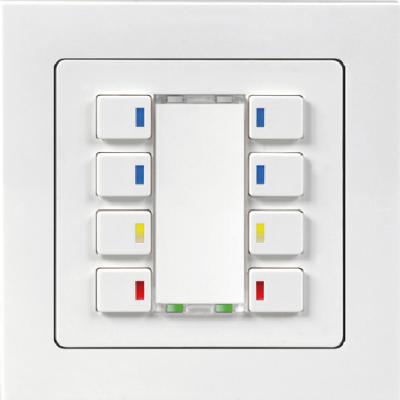

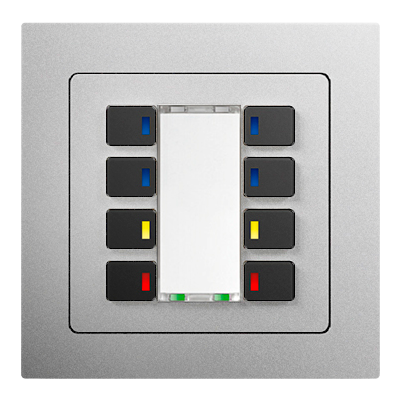

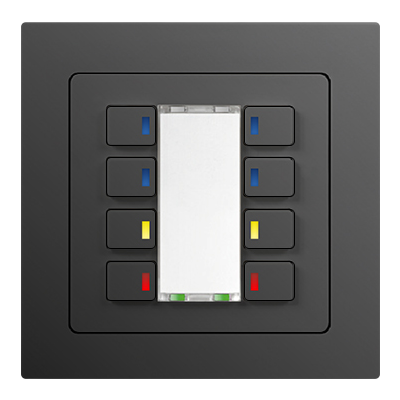

Piazza control panels are available in white, black and silver.
Material: plastic

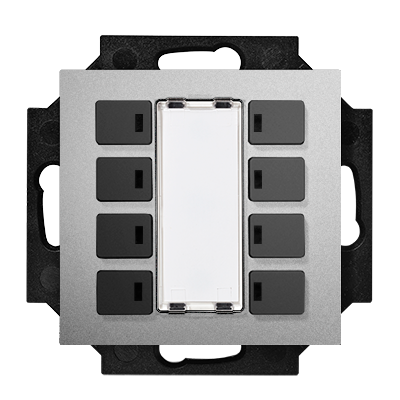

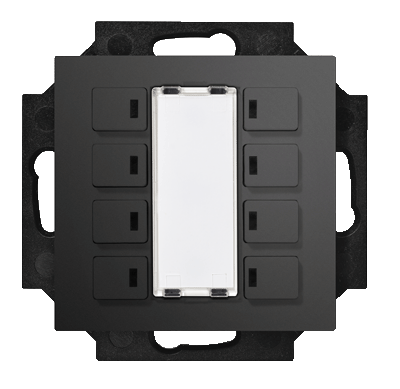

Piazza control panels are installed in standard flush-mounted boxes or in cavity wall boxes (D=55mm).

IPAS operating panels consist of one unit and are supplied exclusively from the bus voltage. An additional supply voltage is not required.
